Why your internet has a speed limit: thermal noise and the physical noise floor

A slow download is usually blamed on routers, software, or the service provider. Those layers matter, but underneath every link sits a limit set by physics: how much information a noisy channel can carry before the receiver can no longer decide what was sent.

This post traces that limit from the receiver’s noise floor through the metrics engineers use on the bench (SNR, $E_b/N_0$, noise figure, receiver sensitivity, EVM, BER) to the mitigation strategies that push links toward Shannon capacity. The thread runs from Johnson–Nyquist thermal noise in resistors to the constellation errors you measure with a vector signal analyzer.

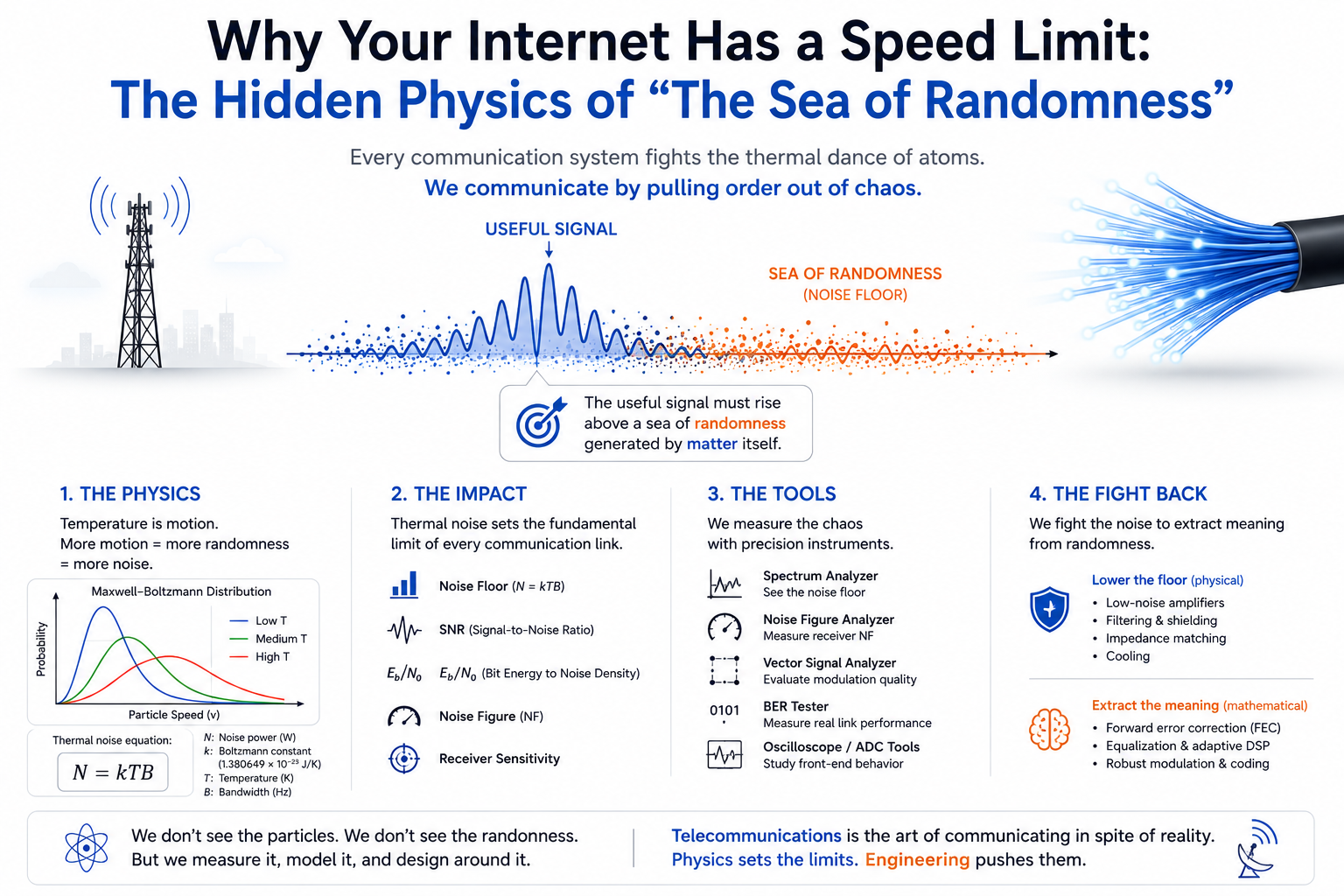

Infographic summary: thermal noise sets the noise floor (N=kTB), key metrics include SNR and Eb/N0, engineers measure it with spectrum analyzers and BER testers, and fight back with LNAs, FEC, and DSP

The noise floor is not silence

A common mistake is to treat link failure as a weak-signal problem alone. The receiver never operates in silence. Even with no intentional transmission, charge carriers in conductors and semiconductors move randomly with temperature. That motion produces a baseline of electrical fluctuation: the thermal noise floor.

The useful signal must rise above that floor. Engineering practice therefore centers on signal-to-noise ratio (SNR), the gap between signal power and noise power, rather than on absolute transmit power. A loud signal in a loud environment can still be unreadable.

Johnson and Nyquist showed in 1928 that the available noise power from an ideal matched resistive load at absolute temperature $T$ over bandwidth $B$ is [1][2]:

$$ N = kTB $$

where $k = 1.380\,649 \times 10^{-23}\,\mathrm{J/K}$ is the Boltzmann constant. In decibels relative to one milliwatt, a 1 Hz bandwidth at room temperature ($T \approx 290\,\mathrm{K}$) corresponds to roughly $-174\,\mathrm{dBm/Hz}$. Widen the bandwidth and the integrated noise power rises proportionally.

The one-line noise power spectral density form is equally common:

$$ N_0 = kT \quad (\mathrm{W/Hz}) $$

Confirmed: Thermal noise is present in every passive conductor and sets a lower bound on how quiet a receiver front end can be at a given temperature.

Nuance: Real links also carry interference, quantization noise, phase noise, and amplifier-added noise. The “noise floor” on a spectrum analyzer is often a mixture. $N = kTB$ is the thermal reference; NF and SINR exist because hardware rarely stops at $kT$ alone.

Temperature, motion, and where the constant $k$ comes from

Temperature in a conductor is microscopic kinetic energy. The Maxwell–Boltzmann distribution describes how molecular speeds spread as temperature rises: hotter systems have broader speed distributions. That statistical picture is the thermodynamic origin of the Boltzmann constant $k$ that appears in $N = kTB$ [3].

In receiver front ends, the practical consequence is Johnson–Nyquist noise: random voltage and current fluctuations whose mean power scales with $T$ and with the bandwidth over which you integrate. Cooling a low-noise amplifier or cryogenic front end lowers $T$ and therefore lowers $kT$. Radio astronomy and some satellite ground stations use that fact routinely. Consumer fiber and copper access links rarely cryo-cool their receivers, but the same equation still sets the reference the link budget is measured against.

Interpretation: The Maxwell–Boltzmann curve describes particle speed statistics. The approximately flat thermal noise spectrum engineers use in link budgets is the electrical manifestation of that agitation at RF and microwave frequencies, not a literal plot of molecular speeds across the channel band.

From physics to the metrics on a datasheet

Most RF engineers do not solve the Maxwell–Boltzmann equation on a Tuesday afternoon. They do live inside the limits it defines. The metrics on a modem datasheet are engineering descendants of those physical bounds.

Noise floor. The baseline power (or power spectral density) against which the signal must compete. In a well-calibrated setup, the thermal component tracks $kTB$ or $kT$.

SNR. $P_s / P_n$: how far the signal sits above the noise. I covered how SNR drives constellation decisions and link adaptation in SNR: the number that decides whether a signal survives.

$E_b/N_0$. The ratio of energy per information bit to the noise power spectral density $N_0$. Modulation and coding comparisons are usually stated in $E_b/N_0$ because it separates waveform efficiency from bandwidth.

Noise figure (NF). How much extra noise a component (typically an LNA or mixer) adds above the thermal reference. A 3 dB NF means the device doubles the noise power at its output relative to an ideal noiseless amplifier with the same gain.

Receiver sensitivity. The minimum signal level at which the receiver meets a target BER or packet error rate at a given modulation and coding scheme. Sensitivity is where the noise floor, NF, required $E_b/N_0$, and implementation margin meet on one line of a datasheet.

These numbers look like product specifications. They are also statements about how much order you can pull out of a channel before thermal and implementation noise wash out the symbol decisions.

Measuring what you cannot see directly

Individual electron fluctuations are not visible on a scope, but their collective effect on a link is measurable.

Spectrum analyzers show where organized signal energy ends and the noise floor begins. Noise figure analyzers quantify how much noise a chain adds above $kT$. BER testers count bit errors after the full demodulation and decoding path. Oscilloscopes and ADC diagnostic tools expose jitter, clipping, and front-end nonlinearities at the analog–digital boundary. Vector signal analyzers evaluate modulation quality in the I/Q plane.

Error Vector Magnitude (EVM) belongs in that last category. It measures the distance between each received symbol and its ideal constellation point. Thermal noise tends to smear clusters around the intended coordinates; phase noise rotates them; IQ imbalance skews them. EVM turns that geometry into one number. For a deeper treatment of when EVM fails while SNR still looks fine, see EVM: why a clean spectrum can still fail at 64-QAM.

Two fronts: lower the floor, extract the meaning

Mitigation splits naturally into physical and algorithmic work.

Lowering the floor

Low-noise amplifiers placed as early as possible in the chain, before downstream stages add their own NF.
Filtering and shielding to keep out-of-band interference out of the bandwidth you intend to process.
Impedance matching so available signal power transfers efficiently instead of reflecting at interfaces.
Cooling where the system can afford it, directly reducing $T$ in the $kT$ term.

Extracting the meaning

Forward error correction (FEC) adds structured redundancy so the decoder can correct bit errors that survive demodulation. FEC does not undo analog noise; it buys reliability at the cost of rate and latency.
Equalization and adaptive DSP compensate for channel distortion (multipath, filter rolloff, sampling offset) that SNR alone does not describe.
Modulation and coding selection trades spectral efficiency against required $E_b/N_0$. Higher-order QAM needs more margin above the noise floor for the same target BER.

The ceiling these techniques approach is Shannon’s channel capacity [4]:

$$ C = B \log_2(1 + \mathrm{SNR}) $$

Capacity depends on bandwidth $B$ and SNR. Because SNR includes thermal noise power in the denominator, the Shannon limit is tied to the same $kT$ that Johnson and Nyquist measured. Shannon’s 1948 capacity theorem is not a restatement of Maxwell–Boltzmann mechanics, but the noise term in the formula is physical. For how sampling limits and capacity limits differ in a receiver chain, see Nyquist is not Shannon: why more samples does not mean more information.

What absolute zero implies for “perfect” communication

Absolute zero ($0\,\mathrm{K}$) is unreachable in practice. $T$ never goes to zero in a real receiver, so $kT$ never vanishes. Engineering pushes margins with better codes, more bandwidth, more power, and cleaner hardware, but the reference noise term remains.

That does not mean every link sits at the Shannon bound. Protocol overhead, interference, latency, and implementation loss all eat margin long before thermodynamics alone stops you. It does mean that when a link is tuned and still fails at the target rate, one of the first questions is whether there is enough SNR or $E_b/N_0$ left above the combined thermal and implementation noise floor for the chosen modulation and coding.

Telecommunications is the work of communicating through a physical medium that never stops moving at the microscopic scale. The speed limit on your connection is partly contractual and partly software, but the floor under all of it is statistical: thermal noise, measured in watts, counted in BER, and bounded by Shannon capacity.
